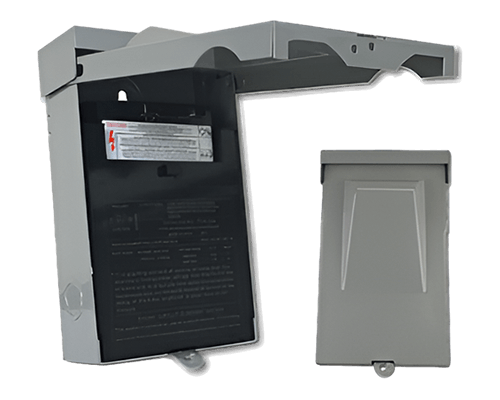

Disconnect Switches
Disconnect switches are a widely used product for the application of residential and light commercial air conditioning units. A Disconnect is installed outdoors, within clear visibility of the air conditioner condensing unit or Heat Pump. Disconnects are also used with Ductless Mini-Split Systems and Swimming Pools.
HQParts offers disconnects in single phase, non-fusible and fusible 30A and 60A versions. These Disconnect Switches provide a power disconnecting means, which should be located within sight of and readily accessible to the outdoor unit it is applied to. HQParts Disconnects are UL rated for quality assurance and are contractor friendly.
Product Sheet 30AF Tech Data Sheet 60AF Tech Data Sheet 60ANF Tech Data Sheet

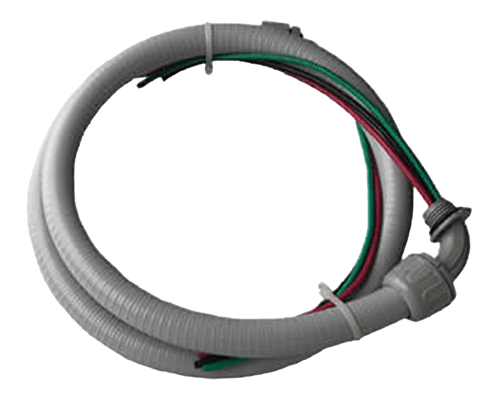

Whips
Whips are a widely used product for application of residential and light commercial air conditioning units. Whips are used for the power connection of indoor and outdoor units.
Coming in 4 feet and 6 feet lengths, our whips are assembled with UL approved components. HQParts whips feature extended leads of 18 inches, for additional ease of install. Our leads, on all ends, are resistant to corrosion, abrasion, acid, water, oils, metal shavings and harsh environments. HQParts whips resists install abuse, pull and crushing. Our conduit material is UV rated, sunlight resistant and smooth inside for easier wire pulling, no sharp edge hazards or burrs, avoiding damage to conductors. Quality, lightweight & quick installation friendly are hallmarks of HQParts whips.
Product Sheet Tech Data Sheet Non Metallic Liquid Tight Conduit - Data Sheet

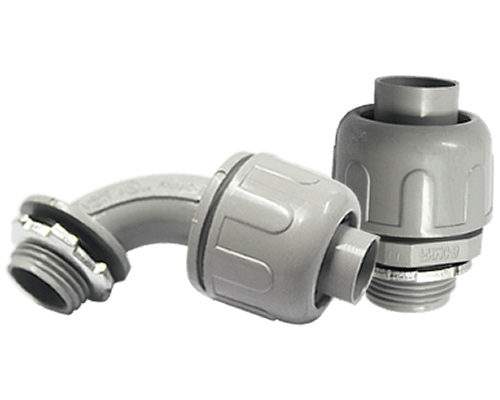

Liquid-Tite Conduit & Fittings
Liquid-Tite flexible Conduit provides protection for wet or oily locations. HQParts UL listed conduit is made with flexible PVC construction. Resist crushing, direct burial, oil, sunlight, and water. Our UL listed Liquid-Tite conduit is UV resistant. Rated to temperatures of 0°F to 165°F, our fittings are available in 1/2” and 3/4” options.
HQParts Liquid-Tite Fittings feature one-piece design that delivers optimum pull strength and liquid-tite seal without a compression nut. The PVC construction features and is produced with UV rated materials for extended outdoor life and integrity. Product is well suited for conduit assemblies & installations Includes the locknut and “O” ring seal 1/2” and 3/4” options available.
Liquid Tight Connector Product Sheet Liquid Tight Conduit Product Sheet Nonmetallic Liquid Tight Connector - Data Sheet

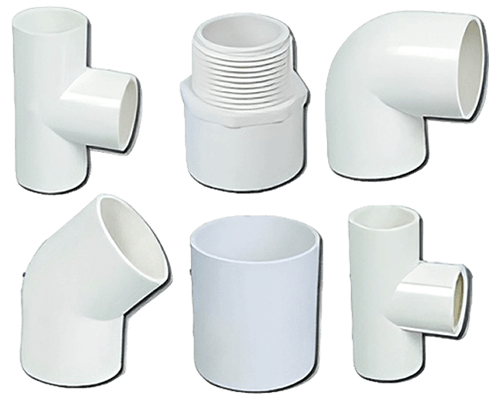

SCH40 & SCH80 PVC Fittings & Pipe
Two of the most common grades of PVC pipe and Fittings are Schedule 40 and Schedule 80. HQParts Schedule 40 pipe and Fittings are the familiar white in color, while SCH80 are grey. SCH40 is primarily used in HVAC applications for condensate drainage. SCH80 products are common to commercial spaces and applications. SCH40 pipe and fittings, are preferrable in comparison to Schedule 80 for residential spaces as it makes it possible for liquids to move through them at a faster rate than SCH80.
Schedule 40 PVC pipe dimensions range from .068 to .688 inches in wall thickness and PSI of up to 480. These pipes are often used as drainage for buildings. Consider Schedule 40 pipes when working with condensate drainage, potable water lines, sprinkler lines, pools, or golf course construction projects.
Schedule 80 pipes have a higher thickness than Schedule 40. Schedule 80 PVC pipe at 3/4” can achieve 690 PSI. SCH80 pipe and fittings are commonly used for electrical conduit, deionized water lines, wastewater treatment management, and industrial plating. HQParts SCH40 and SCH80 PVC Fittings and Pipe are of the highest quality from our global manufacturing partners.
Product Key Features & Advantages
- Freedom from toxicity, odors, tastes
- Smooth interior walls giving high flow capacity
- Excellent chemical resistance
- Lightweight, easy to install by using cold solvent weld and threaded joints
- Long service time under proper use and installation
- Available in 1/2” to 3” fitting sizes and pipe diameters

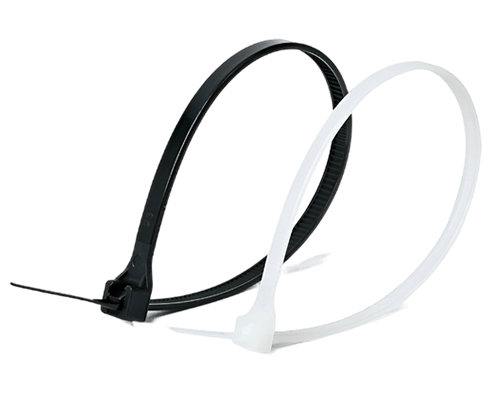

Cable Ties – UL181B/C
HQParts UL rated nylon cable ties are high-quality, durable, and a cost-effective product for your cable tie and zip tie needs. HQParts cable ties are UL181B/C rated, UV resistant, cold resistant and will stand up to your jobs needs. Our HQParts cable ties come in Natural (white) color and Black. Natural in reference to the Nylon PA66 material used to manufacture these high-quality cable ties.
These natural cable ties are also manufactured for indoor applications or in-wall cable bundling. Our cable ties are made to meet industry standards for low smoke production. For long term outdoor applications, our UV resistant Black cable ties provide greater resistance to the sun and weather exposure.
HQParts Cable Tie products come in sizes of 3.5” to 48” in length. Coming 50 or 100 ties to a bag, our packaging is clearly labled, punched and sealed for quality assurance, ease of use and display.
Product Notes & Features
- Material: UL approved nylon PA66
- Flammability: UL94V-2
- Op Temp: -40°C to 85°C
- Rated: UL 181B - C (Mechanical fasteners used with flexible air ducts & air connectors)
- Proposition 65: All sizes of cable ties meet Prop 65 requirements
- Certifications: RoHS certified & CE certified
- 500 Case Quantity (42 cases per pallet)
- 50 Ties per Bag-36” & 48” (Case = 10 Bags)
- 36” and 48” Cable Ties–175lb rated
- 7.5” and 11” Cable Ties–50lb rated
- Standard (Polyamide 6.6), to cover majority of indoor applications
- Tensile strength up to 250lbs (114kg), to cover the most demanding applications
- Packaging: Recyclable polythene bags

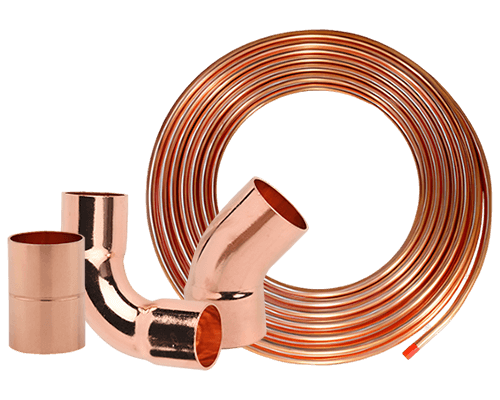

Copper Fittings / Rolled Copper / Linesets
HQParts Copper Fittings are high quality, meeting or exceeding industry standards for working pressures. HQParts ensures copper quality content and adherence to meet and exceed ASME B16.22 standards for wall thickness. HQParts copper fittings have excellent burst pressures and accurate tolerances on the cup side, enabling a stronger connection joint with the tube and smoother brazing.
HQParts stamps the size of each fitting for much easier identification. This benefits contractors with swift identification once out of the package, cutting down errors. This benefits our Distributor partners as well, by assisting counter sales teams correctly and easily identifying the needed fitting. HQParts polybags confine and protect our fittings, ensuring they are clean, safe and undamaged. The closed refrigerant system needs clean fittings to keep the contaminants that can cause expensive and destructive breakdowns, from impacting the system. HQParts Copper Fittings are contractor quality and distributor friendly.
HQParts Rolled Copper is ASTM B280 rated for quality and reliability. Each roll of copper is shrink wrapped in durable plastic and the ends capped for protection to ensure clean and pure copper for immediate install. Seamless drawn construction brazes well with ASME B16.22 rated HQParts copper fittings. High purity copper makes HQParts copper tubes favorable for Air Conditioning and Refrigeration applications. HQParts copper tubes feature, high thermal conductivity, stable mechanical properties covering an extensive temperature range, is suitable with the usage of natural refrigerants. High purity of internal surface, smooth internal surface enhancing flow rate as well as great weldability and cold formability. Available is sizes of 1/4” to 7/8” diameter as well as 50’ and 100’ lengths.
HQParts Linesets utilize the same high quality, ASTMB280 rolled copper, encapsulated in sturdy, UV resistant insulation. Out of the box and ready to for installation to complete you project. Individually packaged for quality, capped and wrapped. Coming in both black and white insulation, 25’, 35’, 50’, 85’ and 164’ lengths. We have the type and variety for your customers needs with the quality that exceeds expectations.
Product Notes & Features
- Seamless construction, forms permanent connections that are resistant to environmental effects
- ASTM B280 Specification for Rolled Copper
- ASME B16.22 Standard
- Universal Fit and Acceptance
- Copper Fitting Sizes Available 1/4” to 1-5/8”
- Convenient, Quality Packaging
